2024 Haulmore Tri-Axle Stainless Steel Water Tanker
New build For sale Tankers

2024 Haulmore Tri-Axle Stainless Steel Water Tanker

Haulmore · 2024 · Price on application

30,000 L stainless steel tri-axle water tanker built for a 20-year life span

30,000 LITRE WATER TANKER 304 GRADE STAINLESS STEEL 20 YEAR LIFE SPAN LONGITUDINAL WASH PLATE FOR LATERAL STABILITY 4 TRANSVERSE BAFFLES ALL PLUMBING PIPEWORK STAINLESS STEEL AUSTRALIAN HYDRECO CLOSE COUPLED ISO PUMP INDEPENDENT AND SEPARATE FAN SPRAYS FOR GROUND DISCHARGE OSCILLATING STRESS RELIEVED AUSTRALIAN DESIGN AND MANUFACTURE TANK LENGTH 10000MM TANK WIDTH 2490MM TANK HEIGHT TOW HITCH – RING FEEDER 50MM PUMPIN GEAR AUSTRALIAN HYDRECO PUMP ISO WATER PUMP TANK CONSTRUCTION – GRADE 314 STAINLESS STEEL

Get a quote

FOOTAGESee it work

PRECISION VIEWERInspect this build

Precision ViewerOrbit, pan and inspect the 2024 Haulmore Tri-Axle Stainless Steel Water Tanker from every angle.
  • DESIGN RATING —
  • AGG MASS —
  • SUSPENSION FUWA 9 LEAF 2.7 METRE SPREAD
  • AXLE CONFIG tri-axle

TELEMETRYFull specification

Dimensions

Tank length10000mm
Tank width2490mm

Running Gear

Tyres11R22.5 X 16 PLY
Stud count10 STUD
PCD285 PCD
Axle makeFUWA
SuspensionFUWA 9 LEAF 2.7 METRE SPREAD
Leaf count9 LEAF
Suspension spread2.7 METRE SPREAD
Axle configurationtri-axle
Axle count3

Braking & Electrical

Brake systemDrum brake

Capacity

Tank volume30,000 L
Tank material304 grade stainless steel

Securing & Accessories

King pin90mm

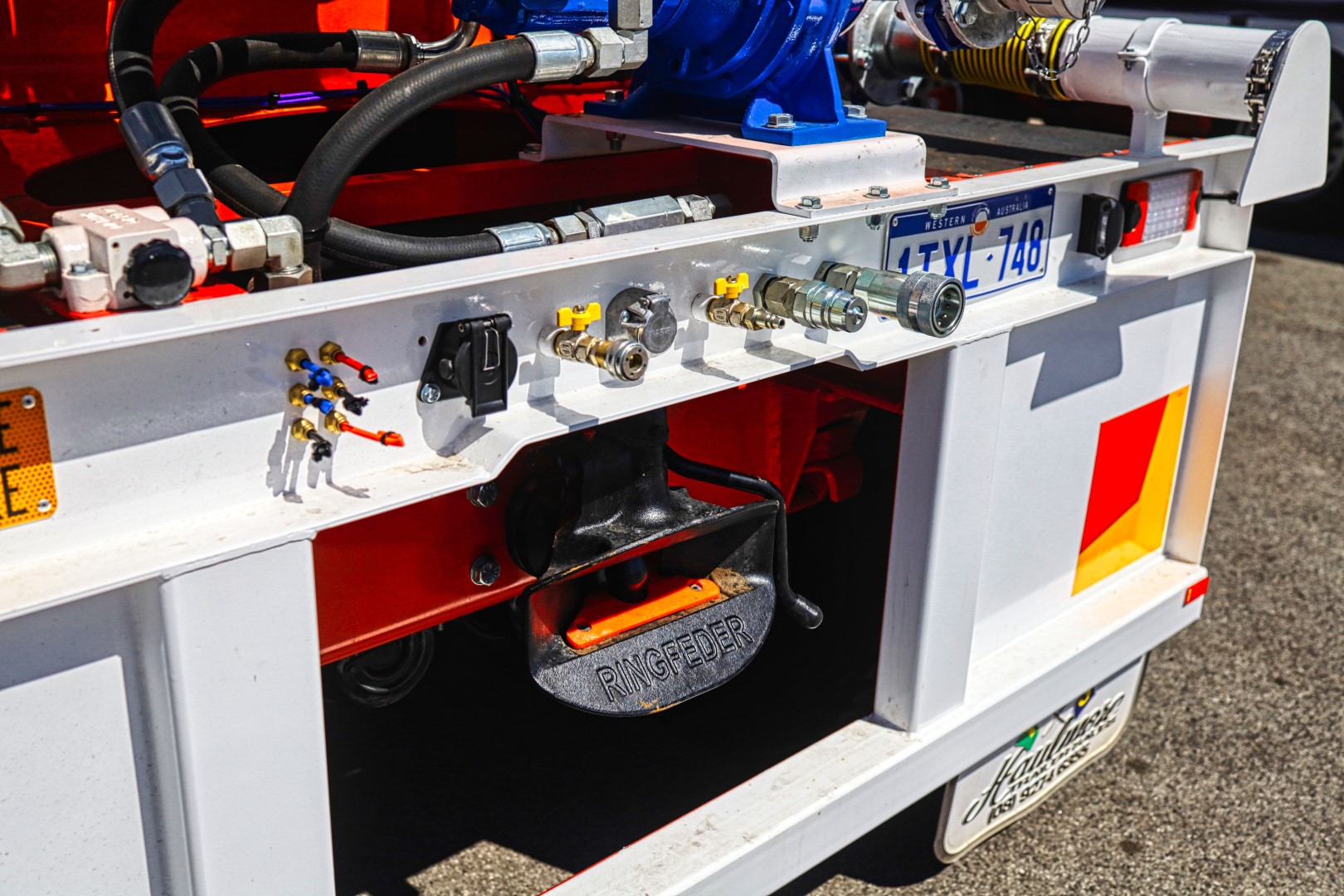

Hitch typeRING FEEDER 50MM
Data-quality note
  • Source page lists both 304 grade (Design Features) and 314 grade (Tank Construction) stainless steel for the tank

We surface contradictions in the source data rather than silently picking — confirm the final figure with our team.

BUILD FEATURESEngineered in

  • 30,000 LITRE WATER TANKER
  • 304 GRADE STAINLESS STEEL
  • 20 YEAR LIFE SPAN
  • LONGITUDINAL WASH PLATE FOR LATERAL STABILITY
  • 4 TRANSVERSE BAFFLES
  • ALL PLUMBING PIPEWORK STAINLESS STEEL
  • AUSTRALIAN HYDRECO CLOSE COUPLED ISO PUMP
  • AUSTRALIAN DESIGN AND MANUFACTURE

DEPLOYMENTBuilt for

Water cartageDust suppressionRoad construction
